Outdoor gradeamento rusts, loosens, and fails when the pipe e fitting choices are wrong. That puts people at risk on every stair e varanda. Choose the right pipe railing once—save on repairs, protect budgets, and keep users safe for years.
For most climates, the best pipe for outdoor gradeamento é 316 stainless steel round pipe (often schedule 40 pipe) because it resists corrosão and needs little maintenance. In inland zones, galvanized steel ou revestido a pó aluminum can work. Confirm building codes para top rail height and spacing, then select compatible pipe and fittings or a pre-engineered railing kit for easier instalação de corrimões.

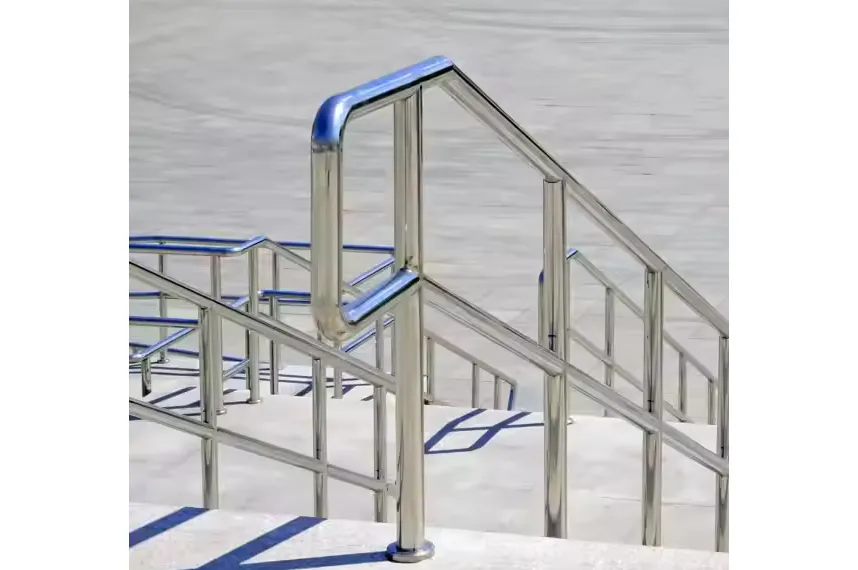

best pipe for outdoor railing handrail
Codes exist to make safe access normal. For work areas, OSHA says the top rail of a guardrail must be 42 inches (±3 in.) above the walking surface and withstand force; codes require these heights to protect users. Public access routes follow ADA rules for corrimão placement, returns, and continuity.
On residential or public egress stair runs, confirm your local building authority before you start. Heights, picket spacing, and loads vary by jurisdiction and project type. When in doubt, choose a tested sistema de proteção and document compliance—it provides safety and speeds permitting.
Explore our engineered stainless stair railing profiles for code-friendly options and load-bearing data.
In coastal or de-icing-salt zones, Aço inoxidável 316 outlasts other choices thanks to molybdenum, which improves resistance to chloride pitting and crevice corrosão. Duplex stainless (e.g., 2205) can be even tougher in salty spray.
In inland areas, galvanized steel (zinc-coated) performs well when the zinc layer is intact. A thick hot-dip galvanize plus a quality revestido a pó topcoat extends life even more. Aluminum pipe is light and clean-looking; with the right architectural powder, it resists ferrugem and fading for many years.
Need round sizes fast? See our stocked Tubo de aço inoxidável 304 options and upgrade to 316 where marine exposure demands it.
A practical spec for most outdoor stair handrail runs is 1-1/2 in. or 1-1/4 in. nominal round pipe in schedule 40 pipe. That wall thickness feels solid in the hand, welds cleanly, and works with common mechanical fittings. Always size to span, loads, and post spacing.
If you prefer rectangular profiles for looks, match strength and grip comfort. For fabricators, we carry square and rectangular sections for railing for stairs and decks; see our tubos quadrados de aço inoxidável for custom cut lengths.
Powder coated finishes in AAMA 2604 class offer solid color and gloss retention for ~5 years of South Florida exposure; AAMA 2605 pushes performance toward ~10 years when you need superior UV and chalk resistance. In harsh, salty air, galvanize first, then coat, or choose 316/duplex stainless.
Architects often pair a zinc layer for sacrificial protection with a fluoropolymer topcoat. This dual system improves protection against corrosion, especially on welded areas where a touch-up is needed.
You can weld posts and rails, or choose mechanical pipe fittings. Modular systems use elbow fittings, tees, and a base flange that anchors to concrete or timber—great when you need speed and field adjustability. With a variety of fittings, installers cut time and avoid hot-work permits.
Some brands popularized slip-on nodes; they lock on with set screws. They’re rugged, reconfigurable, and often easier to install than fully welded assemblies for small sites. (For long runs, welding still shines.) Fittings and pipe from one ecosystem simplify sourcing.
See our corrimão em aço inoxidável components and ready-made corrimão em tubo de aço inoxidável assemblies.

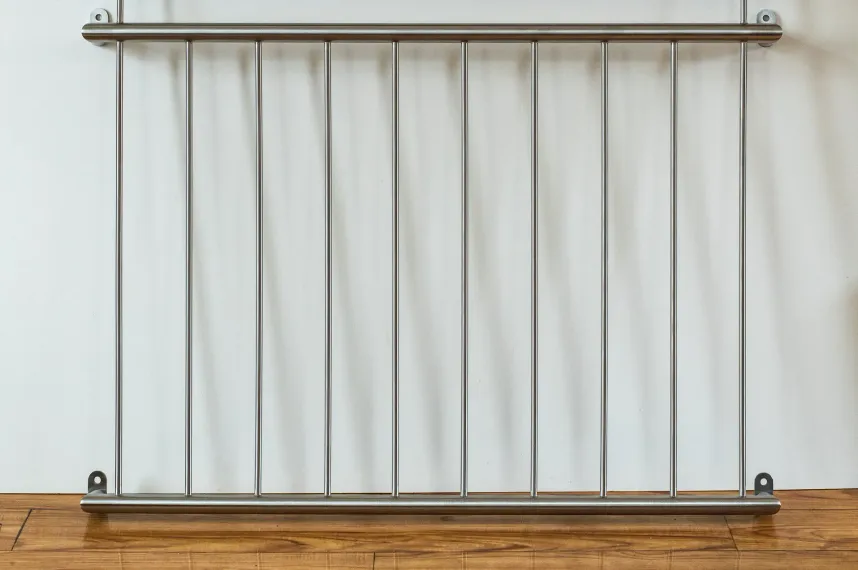

Stainless steel railing modular components
Sim-black pipe (uncoated steel) can make a rustic wall handrail indoors. Outdoors, it needs primer, paint, and steady maintenance; otherwise, ferrugem wins. Many DIY photos online show cool looks, but for long-term durability, pick stainless, hot-dip galvanized iron pipe, or aluminum with performance coatings.
If you want the “shop-floor” look outside, specify industrial pipe with a protective finish and sealed threads, and keep water out of the system. That way, a hand rail that starts stylish stays safe.
Public routes follow ADA handrail guidance: continuous graspable rails, proper extensions/returns, and heights typically 34–38 inches above nosings. Workplaces follow OSHA para guardrail systems with top rail at 42 inches (±3 in.). Always verify project scope (public vs. workplace).
Where ramps or accessible paths occur, add grab rails and keep clearances consistent. Done right, the layout improves flow and a safe work environment for all users.
For exposed sites, choose stainless or galvanized pipe, seal cuts, and cap open ends so water can’t enter. That small detail extends life and keeps the outdoor handrail looking new.
Browse railing examples and specs on our corrimão de aço inoxidável para escadas página.
Aesthetics matter. Round pipe feels comfortable and reads “classic.” Square/rectangular rails look crisp and modern on a escada or deck. Either way, pick proportions that meet grip needs, keep sightlines open, and match the building’s style.
If you want a bold look with less weight, combine steel pipe posts with cable or glass infill. Consider a revestido a pó color on posts and a brushed stainless top for visual contrast.
Designers often start with oval & elliptical stainless tubing to soften corners without losing modern lines.

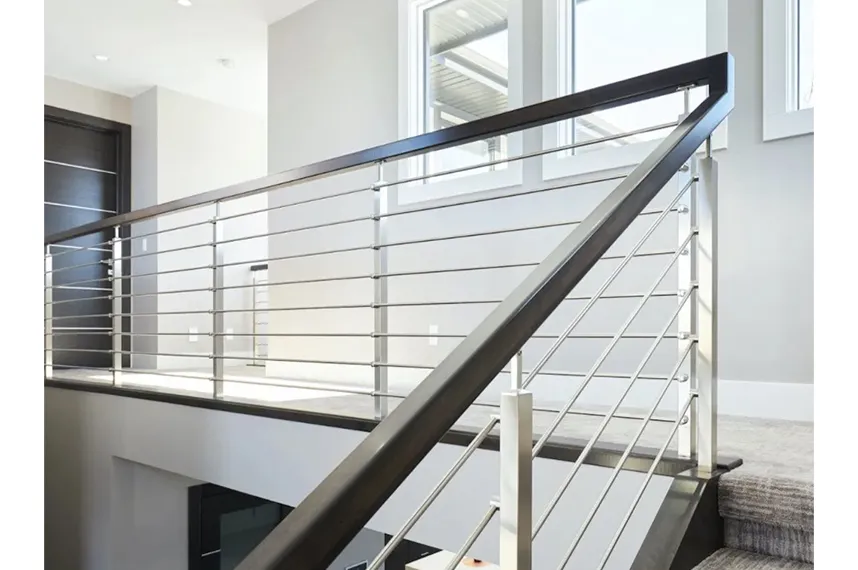

square tube stainless steel railing
For a varanda, a two-line horizontal rail with a continuous top can read minimal yet sturdy. For wall-mounted corridors, a simple rail at ADA height keeps travel paths intuitive. Keep returns closed so sleeves and bags don’t catch.
Where glass is used, a railing made with stainless posts and clamps stays bright with routine washdowns. Wherever possible, using a pipe with sealed ends reduces internal moisture and extends coating life.
Some homeowners try a vevor pipe kit for small porches. It can work for light duty. For heavy foot traffic, public use, or long spans, step up to engineered structural pipe with tested nodes such as kee klamp fittings. When loads, codes, or heights are complex, hiring a contractor protects you and the users.
Contractors can design a sistema de proteção that passes inspection, handle core drills on slabs, and coordinate with waterproofers and façade trades.
Count posts first, then rails. For straight runs, a quick rule is run length ÷ stock length, plus waste. That tells you how much pipe to order. Add connectors, anchors, and an appropriate railing kit for your substrate.
If you prefer stainless from day one, you’ll reduce lifetime costs. See our company profile and capabilities and request cut-to-length service to speed your job.
Stainless relies on its passive chromium-oxide film, so routine washing keeps the surface active. Duplex and 316 shine in salt and pool splash. Zinc-rich galvanize shields carbon steel; touch up cut edges after you soldadura or drill.
Painted systems need periodic checks for chips and underfilm corrosão. Whichever path you take, plan a light cleaning schedule. It’s simple, and it stretches life for steel railings.
Compare common grades on our Tubo de aço inoxidável 316 página.
In lobbies, a brushed wall mount railing keeps traffic moving. Outside, a site guardrail with kick plates and toe boards protects edges. On industrial platforms, secure posts, top rail, and mid-rails to deliver safety rails e um safe work environment.
Remember: different occupancies have different rules. Verify span, loading, and post attachment details with the project engineer.
| Material / Spec | Typical use | Strength-to-weight | Manutenção | Notas |
|---|---|---|---|---|
| Aço inoxidável 316 round pipe (often schedule 40 pipe) | Coastal/public | Elevado | Baixa | Best in salt, great longevity. |
| Aço inoxidável 304 | Inland/decor | Elevado | Baixa | Adequate away from chlorides. |
| Hot-dip galvanized steel | Inland/utility | Very high | Médio | Recoat cuts after soldadura; can be revestido a pó for looks. |
| Aluminum pipe with AAMA 2604/2605 | Residential/commercial | Médio | Baixa | Light, colorfast; choose the right coating class. |
| Black pipe (painted) | Rustic indoor | Médio | Elevado | Needs frequent repainting outdoors. |
When a user grips a simple handrail at the right height and clearance, they move confidently. When a deck’s top rail hits the correct line, people lean without worry. These details seem small, but they prevent falls, reduce claims, and enhance safety every day.
What is the best pipe for outdoor stair railing?
For most public or coastal sites, 316 stainless steel round pipe is the best pipe thanks to chloride resistance and low upkeep. In mild inland areas, high-quality galvanized steel or coated aluminum also perform well.
Can I use galvanized iron pipe or galvanized steel outdoors without paint?
Sim, galvanized iron pipe has zinc that resists weathering; many utility rails use it bare. Still, chips and cut ends must be sealed, and you may add a revestido a pó finish for color or extra life.
What does ADA say about handrails, and how is OSHA different?
ADA guides public access routes (height, returns, continuity). OSHA governs workplace guardrail systems (loads and top rail height at ~42 inches). Know your occupancy and follow both when they apply.
Are off-the-shelf railing kits strong enough?
A good railing kit rated for exterior loads is fine for homes and light commercial entries. For long spans, crowd loads, or complex geometry, consider engineered systems or hiring a contractor.
Can I mix pipe and fittings from different brands?
Sometimes, but tolerances vary. Sticking to one family of pipe fittings and nodes (e.g., kee klamp) avoids play and makes inspection simpler.
Do I need stainless for every project?
Not always. Match material to environment and design. Our team can recommend grades, coatings, and finishes that fit budget and performance goals—then cut and supply to spec.
